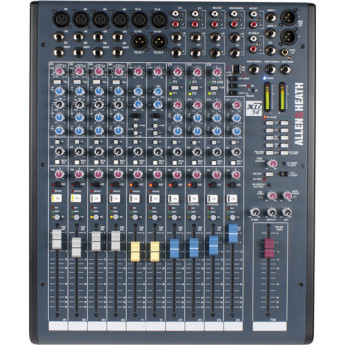

Allen & Heath XB-14 2 Radio Broadcast Mixer
Model: AH-XB-14-2
Allen & Heath Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Product Unavailable
We are sorry. At this time, we are not accepting offers on this product.
Specifications
General Information
| Inputs | Mono Channel Microphone Input (XLR): +6 to -63 dBu for Nominal (+17 dBu Maximum) Mono Channel Line Input (TRS Jack Socket): +10 to -26 dBu (+30 dBu Maximum) Stereo Input (TRS Jack and RCA Sockets): 0 dBu Nominal (Control = Off to +10 dBu) Telco Channel Input (XLR): +10 to -26 dBu (+30 dBu Maximum) |
| Outputs | PGM L/R Outputs (XLR): +4 dBu Nominal (+25 dBu Maximum) PGM Mono Output (RCA Phono): 0 dBu Nominal (+21 dBu Maximum) Aux Output (Jack Socket: 0 dBu Nominal (+21d Bu Maximum) Mix B, Audition and CRM Outputs (RCA Phono Sockets): 0 dBu Nominal (+21 dBu Maximum) Telco Output (XLR): 0 dBu Nominal (+21 dBu Maximum) |
| USB Audio | CODEC: USB Audio In/Out: USB 1.1 Compliant 16 bit Sample Rate: 32, 44.1, or 48 kHz |
| THD + N | Microphone in to PGM L/R Out, 0 dB Gain 1 kHz + 10 dBu Out: 0.001% |
| Noise | Microphone Pre EIN @ Maximum Gain 150R Input Z: 22 Hz-22 kHz, -124 dBu PGM Out, PGM Fader Nominal: 22 Hz-22 kHz, -100 dBu Aux Out, Alt Out, Rec Out Nominal: 22 Hz-22 kHz, |
| Crosstalk / Attenuation | Mono fader attenuation (dB relative to +10 dBu) 1 kHz/10 kHz -95/-95 Mono ON switch attenuation (dB relative to +10 dBu) 1 kHz/10 kHz -95/-95 TELCO fader attenuation (dB relative to +10 dBu) 1 kHz/10 kHz -95/-95 TELCO ON switch attenuation (dB relative to +10 dBu) 1 kHz/10 kHz -95/-95 Stereo fader attenuation (dB relative to +10 dBu) 1 kHz/10 kHz -95/-90 Stereo ON switch attenuation (dB relative to +10 dBu) 1k Hz/10 kHz -95/-95 PGM fader attenuation (dB relative to +10 dBu) 1 kHz/10 kHz -100/-95 TELCO clean-feed isolation from I/P (dB relative to +10 dBu) 1 kHz/10 kHz -55/-40 Stereo separation, L in to PGM R out. dBr 1 kHz/10 kHz -70/-50 |
| Headroom | Analog Headroom from Nominal (OVu) Outputs: 21 dB Analog Headroom from Nominal (OVu) Mix Point: 24 dB USB In/Out Headroom from Nominal (OVu): 14 dB |
| Frequency Response | Microphone In to PGM L/R Out: 30 dB Gain, +0.5/-1 dB 10 Hz-30 kHz Line In to PGM L/R Out: 0 dB Gain, +0.5/-1 dB 10 Hz-20 kHz Stereo In to PGM L/R Out: +0.5/-1 dB 10 Hz-30 kHz |
