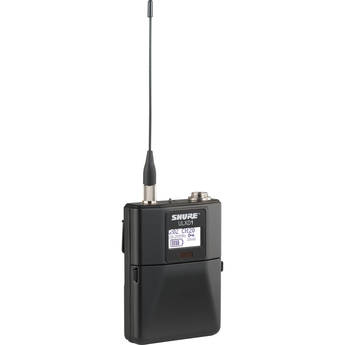

Shure ULXD1 Wireless Bodypack Transmitter (H50 / 534 tp 598 MHz)

Model: ULXD1LEMO3-H50

Shure Warranty
Image coming big
Image coming big
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • Guaranteed Brand New Products
  • All Products Sold by Manufacturer Authorized Retailers
  • 30 Day Return Policy
  • Free Shipping
    No Additional Fees

Product Unavailable

We are sorry. At this time, we are not accepting offers on this product.

Specifications

General Information

Connector 3-Pin LEMO connector Unbalanced 1 MOhm
Impedance 50 Ohms
Operating Range 300' (100 m)
Gain Range 0 to 21 dB (in 3 dB steps)
Line Max Input Level Pad Off: 8.5 dBV (7.5 Vpp) Pad On: 20.5 dBV (30 Vpp)
EIN Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical
RF Output SMA
Antenna 1/4 wave
Bandwidth Occupied Bandwidth: < 200 kHz
Modulation Shure Proprietary Digital
Output Power 1 mW, 10 mW, 20 mW
Frequency Response 20 Hz to 20 kHz (±1 dB), flat Note: Dependent on microphone type
Battery Shure SB900 Rechargeable Li-Ion or AA batteries Battery Runtime @ 10 mW: Shure SB900: > 12 hours Alkaline: 11 hours
Housing Cast aluminum
Dimensions (HxWxD) 3.4 x 2.6 x 0.9" (86 x 66 x 23 mm)
Weight 142 g (5.0 oz), without batteries
Product Highlights
  • H50 / 534 tp 598 MHz
  • For Use with ULXD4 Receiver
  • 3-Pin LEMO Input Connection
  • Uncomprimising Digital Audio Quality
  • Secure Wireless 256-Bit Encryption
  • Up to 12 Hours on Li-Ion AA Battery
  • 1, 10 & 20mW Output Power
  • Rugged Metal Housing
In The Box
  • Shure ULXD1 Wireless Bodypack Transmitter (H50 / 534 tp 598 MHz)
  • 2-Year Warranty
