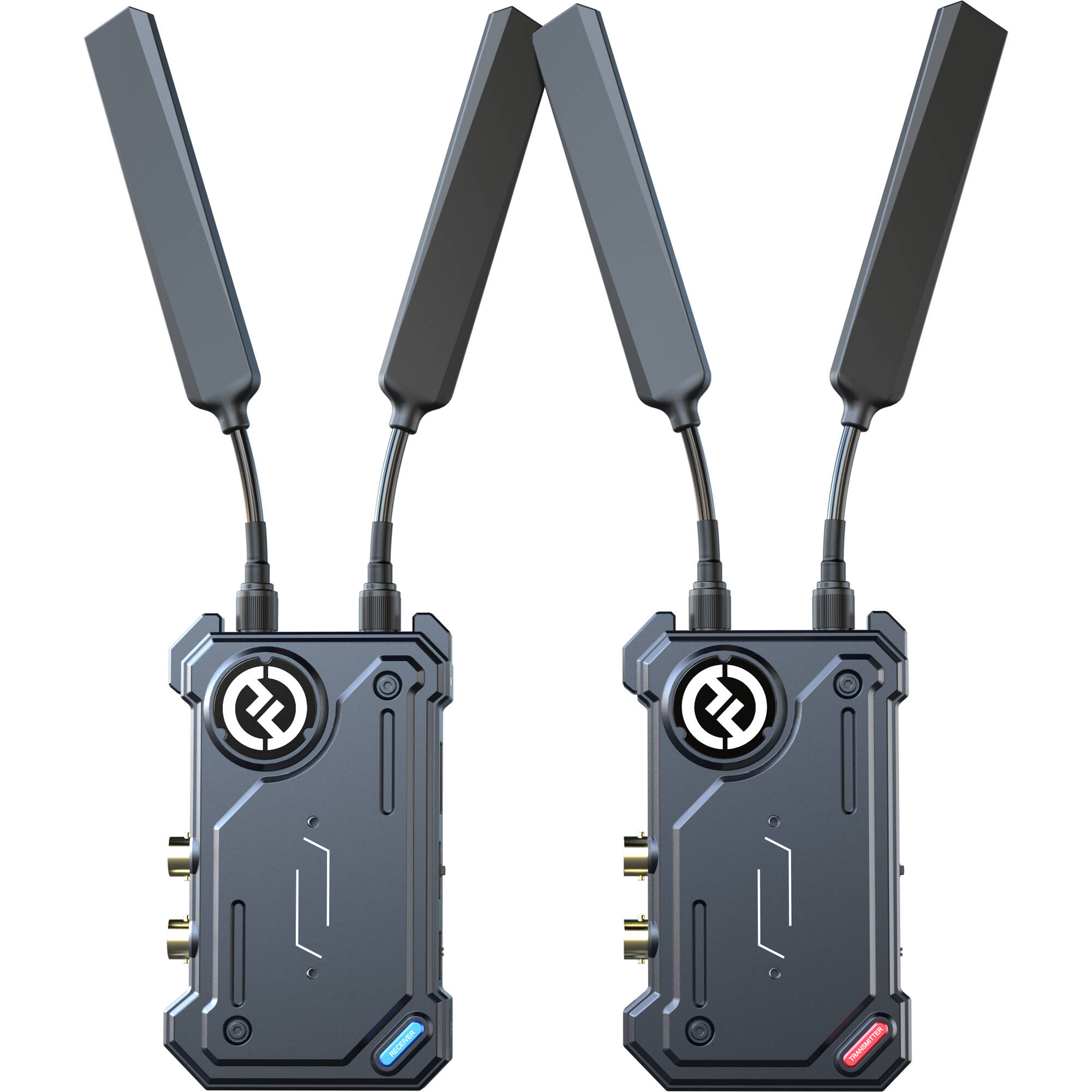

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System

Name: Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Brand: Hollyland
SKU: GT-0756343
Price: 899.0 USD
Availability: BackOrder

Model: HL-COSMO C1

Hollyland Warranty

How it works

You name the price you want to pay for a product.
We send your offer to a network of Certified Retailers.
If the retailer likes your offer, you get that price for the product.

Greentoe Guarantee

Guaranteed Brand New Products
All Products Sold by Manufacturer Authorized Retailers
30 Day Return Policy
Free Shipping
No Additional Fees

Product Back-Ordered

We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.

Specifications

Specifications

Wireless

Cellular Support	No
Bluetooth	No
Wireless Range	1000' / 304.8 m
Channel Bandwidth	20 MHz
Frequency Range	US: 5.1 to 5.8 GHz
Latency	40 ms
RF Power	22 dBm
RF Sensitivity	-80 dBm
Wi-Fi	Yes

Power

Power Consumption	Transmitter/Receiver: 9 W
Battery Type	Transmitter/Receiver: 1x L-Series
DC Input Power	6 to 16 VDC

Packaging Info

Box Dimensions (LxWxH)	11.6 x 10.8 x 5.5"
Package Weight	4.39 lb

Mounting

1x Cold Shoe

Key Specs

Latency	40 ms
Power Consumption	Transmitter/Receiver: 9 W
Video Format	HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Battery Type	Transmitter/Receiver: 1x L-Series
Video I/O	Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI Output
Embedded Audio	HDMI/SDI: 2-Channel
Mounting	1x Cold Shoe

Inputs / Outputs

Embedded Audio	HDMI/SDI: 2-Channel
Encryption	128-Bit AES
Other I/O	Transmitter/Receiver: 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input
Power I/O	Transmitter/Receiver: 1x USB-C (2 A / 5 VDC) Input
Audio I/O	No
HDCP Support	Not Specified by Manufacturer
Video I/O	Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI Output
Antenna I/O	Transmitter/Receiver: 2x RP-SMA Male

General

Weight	Transmitter: 7.5 oz / 214 g, Excluding Antenna Receiver: 7.4 oz / 210 g, Excluding Antenna
Dimensions	Transmitter/Receiver: 4.5 x 2.8 x 1.3" / 115 x 70 x 32 mm (Excluding Battery Plate)

Format Support

Video Format	HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Timecode Support	Yes
Audio Format	Not Specified by Manufacturer

Environmental

Environmental Protection

Product Highlights

Wireless Video Transmitter/Receiver Set
Transmitter HDMI/SDI Input, SDI Loop Out
Receiver HDMI & 2 x SDI Outputs
OLED Screen, USB Type-C Power Input
1000' Line-of-Sight 1080p60 Transmission
5.1 to 5.9 GHz Frequency Range
AES-128 Encryption, 40 ms Latency
L-Series Battery Plates on TX/RX
DC Adapter Power or Optional Battery

In The Box

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Cosmo C1 Transmitter
Cosmo C1 Receiver
Antenna
Mushroom Antenna
Shoe Mount
Pan/Tilt Mount with Shoe Mount
USB Type-C Adapter
DC Adapter
Expansion Accessory
Limited 1-Year Manufacturer Warranty
