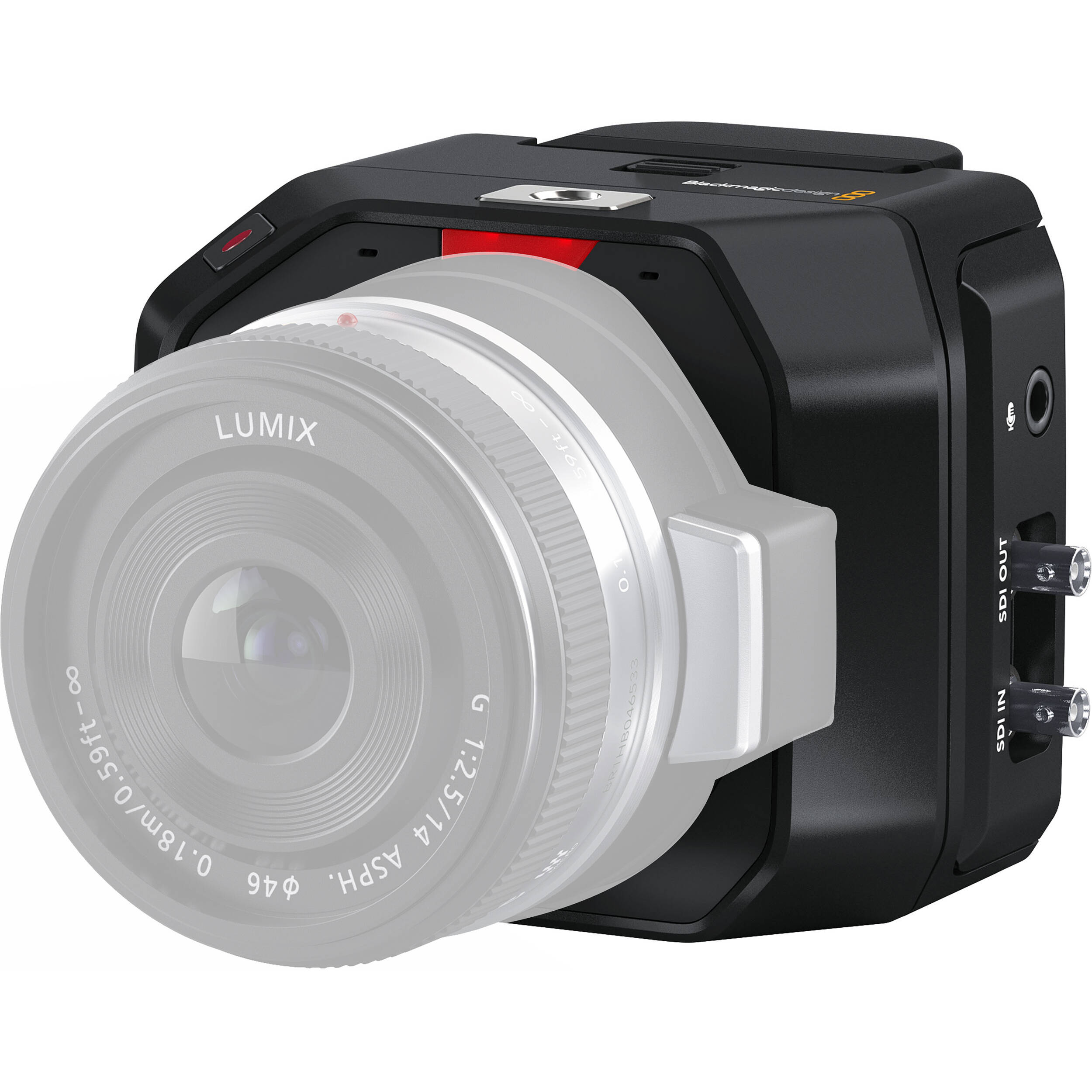

Blackmagic design Micro Studio Camera 4K G2

Name: Blackmagic design Micro Studio Camera 4K G2
Brand: Blackmagic Design
SKU: GT-0755936

Model: CINSTUDMFT/UHD/MRG2

Blackmagic Design Warranty

How it works

You name the price you want to pay for a product.
We send your offer to a network of Certified Retailers.
If the retailer likes your offer, you get that price for the product.

Greentoe Guarantee

Guaranteed Brand New Products
All Products Sold by Manufacturer Authorized Retailers
30 Day Return Policy
Free Shipping
No Additional Fees

Name your price

ON A BRAND NEW Blackmagic Design CINSTUDMFT/UHD/MRG2

MSRP: $995.00 ?

ENTER YOUR PRICE

Your Chances of Success

lowest price online $

average price online $

Your chances of success

You name the price you want to pay for a product.
We send your offer to a network of Certified Retailers.
If the retailer likes your offer you get that price for the product.

Specifications

Specifications

Recording

Recording Modes	DNxHD/ProRes: 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Recording	Blackmagic RAW 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Audio Recording	Raw: 2-Channel 24-Bit 48 kHz LPCM Audio

Power

Power Consumption	>25 W
Power I/O	1x Barrel (12VDC) Input

Packaging Info

Package Weight	1.48 lb
Box Dimensions (LxWxH)	7 x 5.2 x 4"

Key Specs

Image Sensor	17.78 x 10 mm (Four Thirds) CMOS
Power I/O	1x Barrel (12VDC) Input
Display Type	No
Raw Recording	Blackmagic RAW 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Recording Modes	DNxHD/ProRes: 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Video I/O	1x HDMI 2.0 Output 1x Micro BNC (12G-SDI) Input 1x Micro BNC (12G-SDI) Output
Broadcast System Compatibility	NTSC, PAL
Lens Mount	Micro Four Thirds
Sensor Resolution	Not Specified by Manufacturer

Interfaces

Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Video I/O	1x HDMI 2.0 Output 1x Micro BNC (12G-SDI) Input 1x Micro BNC (12G-SDI) Output
CCU I/O	No
Other I/O	2x USB-C (USB 3.2 / 3.1 Gen 1) Control/Data/Video Input/Output

Imaging

Signal-to-Noise Ratio	63 dB
Gain	0 to 18 dB
Horizontal Resolution (TV Lines)	0 TV Lines
Sensor Resolution	Not Specified by Manufacturer
Image Sensor	17.78 x 10 mm (Four Thirds) CMOS

General

Shoe Mount	No
Accessory Mounting Thread	4x 1/4"-20 on Camera Body
Tripod Mount	No
Dimensions (W x H x D)	3.3 x 2.6 x 2.74" / 8.4 x 6.6 x 6.96 cm (Without Protrusions)
Weight	10.58 oz / 0.3 kg

Environmental

Operating Humidity	0 to 90%
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Temperature	32 to 104°F / 0 to 40°C

Display

Display Type

Camera

Broadcast System Compatibility	NTSC, PAL
Built-In ND Filter	No
Precise Scan Rate Control	No
Shutter Type	Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Lens Mount	Micro Four Thirds
Built-In Microphone	Stereo

Product Highlights

Active Micro Four Thirds Lens Mount
UHD 4K Resolutions up to 3840 x 2160p60
12G-SDI Video Input/Output, HDMI Output
13-Stop Dynamic Range, Compact Design
Camera Control via SDI, HDMI, or USB
Program and Talkback over SDI, Tally
USB-C Expansion Port, 3.5mm Audio In
Built-In Color Corrector
Canon LP-E6 Battery Slot

In The Box

Blackmagic Design Micro Studio Camera 4K G2
12 VAC Power Supply with International Socket Adapters
Turret Dust Cap
Limited 1-Year Manufacturer Warranty
