Canon EOS R5 Mark II Mirrorless Camera
Model: 6536C002
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Viewfinder
Resolution | 5,760,000 Dot |
Eye Point | 24 mm |
Coverage | 100% |
Magnification | Approx. 0.76x |
Diopter Adjustment | -4 to +2 |
Type | Built-In Electronic (OLED) |
Size | 0.5" |
Video Capture
IP Streaming | No |
Gamma Curve | Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020 |
Fast-/Slow-Motion Support | Yes |
External Recording Modes | 4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps |
Internal Recording Modes | Raw 14-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps UHD 8K (7680 x 4320) at 23.98/25/29.97 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps |
Audio Recording | AAC Audio LPCM Audio |
Built-In Microphone | Stereo |
Recording Limit | No |
Still Image Capture
Image Sizes | 3:2 HEIF / JPEG / Raw 44.8 MP (8192 x 5464) 24 MP (6000 x 4000) 17.3 MP (5088 x 3392) 11.6 MP (4176 x 2784) 3.8 MP (2400 x 1600) 1:1 HEIF / JPEG 29.8 MP (5456 x 5456) 16 MP (4000 x 4000) 7.8 MP (2784 x 2784) 2.6 MP (1600 x 1600) 4:3 HEIF / JPEG 39.8 MP (7280 x 5464) 21.3 MP (5328 x 4000) 10.3 MP (3172 x 2784) 3.4 MP (2112 x 1600) 16:9 HEIF / JPEG 37.7 MP (8192 x 4608) 20.2 MP (6000 x 3386) 9.8 MP (4176 x 2344) 3.2 MP (2400 x 1344) |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Image File Format | HEIF, JPEG, Raw |
Bit Depth | 14-Bit |
Monitor
Display Size | 3.2" |
Secondary Display | Top: Status Display |
Display Type | Articulating Touchscreen LCD |
Resolution | 2,100,000 Dot |
Key Specs
Image Sensor | 36 x 24 mm (Full-Frame) BSI Stacked CMOS |
Image Stabilization | Sensor-Shift, 5-Axis |
ISO Sensitivity Range | Photo 100 to 51,200 (Extended: 50 to 102,400) |
Continuous Shooting | Electronic Shutter Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw) Mechanical Shutter Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw) |
Internal Recording Modes | Raw 14-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps UHD 8K (7680 x 4320) at 23.98/25/29.97 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps |
Power I/O | 1x USB-C (5VDC at 1.5 A) Input |
Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input) |
Display Type | Articulating Touchscreen LCD |
Wireless | 2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0 |
Battery Type | 1x LP-E6P Rechargeable Lithium-Ion or 1x LP-E6NH Rechargeable Lithium-Ion or 1x LP-E6N Rechargeable Lithium-Ion |

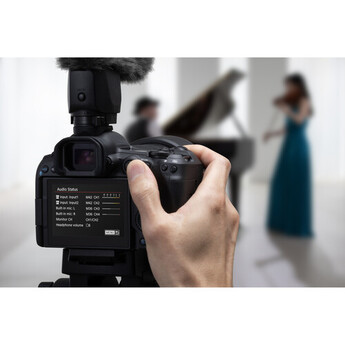

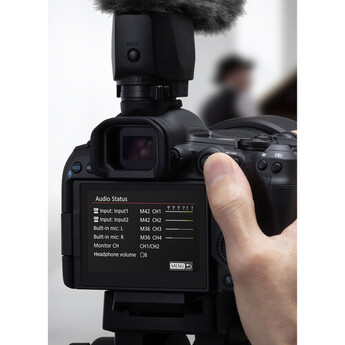

Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
Video I/O | 1x HDMI (Unspecified Signal) Output |
Media/Memory Card Slot | Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended] Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
External Recording Modes | 4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps |
Lens Mount | Canon RF |
Sensor Resolution | Actual: 50.3 Megapixel Effective: 45 Megapixel |
Interface
Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input) |
Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
Mobile App Compatible | Yes: Android & iOS App Name: Canon Camera Connect Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
Wireless | 2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0 |
Power I/O | 1x USB-C (5VDC at 1.5 A) Input |
Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
Video I/O | 1x HDMI (Unspecified Signal) Output |
Media/Memory Card Slot | Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended] Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
Imaging
Capture Type | Stills & Video |
Lens Mount | Canon RF |
Sensor Resolution | Actual: 50.3 Megapixel Effective: 45 Megapixel |
Image Sensor | 36 x 24 mm (Full-Frame) BSI Stacked CMOS |
Sensor Crop (35mm Equivalent) | Crop Factor: 1x Additional Modes: 1.6x *Additional Crop Occurs in Select Video Modes |
Image Stabilization | Sensor-Shift, 5-Axis |
Built-In ND Filter | No |
General
Dimensions (W x H x D) | 5.4 x 3.9 x 3.5" / 138.4 x 98.4 x 88.4 mm |
Battery Type | 1x LP-E6P Rechargeable Lithium-Ion or 1x LP-E6NH Rechargeable Lithium-Ion or 1x LP-E6N Rechargeable Lithium-Ion |
Shoe Mount | 1x Hot Shoe |
Tripod Mounting Thread | 1x 1/4"-20 Female (Bottom) |
Material of Construction | Magnesium Alloy |
Weight | 1.5 lb / 670 g (With Battery, Recording Media) 1.3 lb / 588 g (Body Only) |
Focus
Autofocus Points | Photo Contrast Detection, Phase Detection: 1053 Video Contrast Detection, Phase Detection: 975 |
Autofocus Sensitivity | -7.5 to +21 EV |
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF, Manual Focus, One-Shot AF, Single-Servo AF |
Flash
Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Shoe Mount |
Built-In Flash/Light | No |
Maximum Sync Speed | 1/250 Second |
Exposure Control
Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Metering Range | -3 to 20 EV |
White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Continuous Shooting | Electronic Shutter Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw) Mechanical Shutter Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw) |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Shutter Speed | Electronic Shutter 1/32000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Mechanical Shutter 1/8000 to 30 Seconds |
Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
ISO Sensitivity Range | Photo 100 to 51,200 (Extended: 50 to 102,400) |
Bulb/Time Mode | Bulb Mode |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 85% |
The Canon EOS R5 Mark II is the second version of their enormously popular camera aimed at demanding enthusiasts. It features a new stacked 45 Megapixel sensor, internal upscaling options, a viewfinder with eye control, enhanced autofocus, faster bursts, 8k video up to 60p in RAW, improved heat...
A rare mix of resolution and speed
-
+
45MP Stacked CMOS chip nets excellent images and video, Smart autofocus system with 30fps subject tracking, 12-bit 8K60 Raw and oversampled 10-bit 4K30 video, Pro-grade, weather-sealed construction, Large, clear EVF with wide color gamut, Touch LCD with vari-angle hinge
-
-
Eye-controlled focus system doesn't work for everyone, Poorly conceived hot shoe cover design, Non-suppressible warning screen when using legacy batteries
The Canon EOS R5 Mark II is a successor to the four-year-old Canon EOS R5 , with a huge array of updates and improvements. Launched alongside the sports-focused Canon EOS R1, it’s designed to be a highly capable all-rounder that can handle almost any task for either photography or video.
It works for what I am trying to do - learn photography in various genres. I have the R5 and R6m2, but the new features has allowed me to improve capture of various subjects. From wildlife to landscape. I recently did panning of a motorcycle with pre-capture allowed for many sharp results.
- 45MP Full-Frame Stacked BSI CMOS Sensor

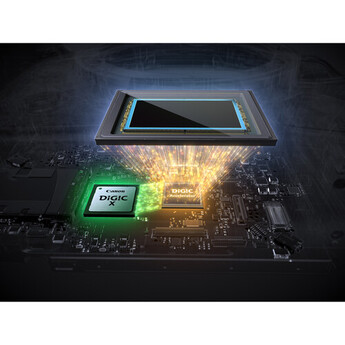

- DIGIC Accelerator Processing
- Cross-Type Dual Pixel Intelligent AF
- 8K 60 Raw/4K 60 SRAW/4K 120 10-Bit Video
- Up to 30 fps, Pre-Continuous Shoot Mode
- 5.76m-Dot EVF with OVF Sim. View Assist

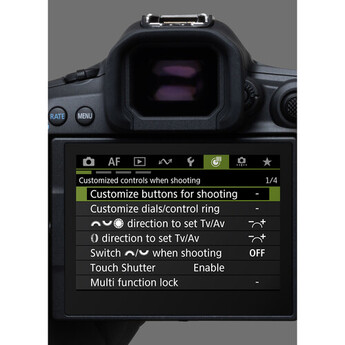

- 3.2" Vari-Angle Touchscreen LCD
- In-Camera Upscaling to 179MP
- CFexpress & SD UHS-II Memory Card Slots
- Wi-Fi 6E/Wi-Fi 6 Support
- Canon EOS R5 Mark II Mirrorless Camera
- Camera Strap
- Canon R-F-5 Camera Cover
- Canon ER-kE Eyecup
- Canon ER-SC3 Shoe Cover
- Canon LP-E6P Lithium-Ion Battery
- Canon LC-E6 Charger for LP-E6 and LP-EL Battery Packs
- Battery Pack Cover
- Canon IFC-100U Interface Cable (39.4")
- Power Cord
