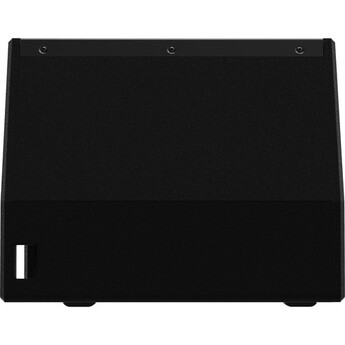

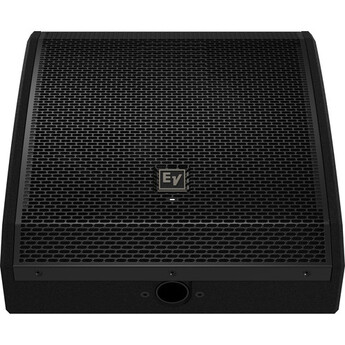

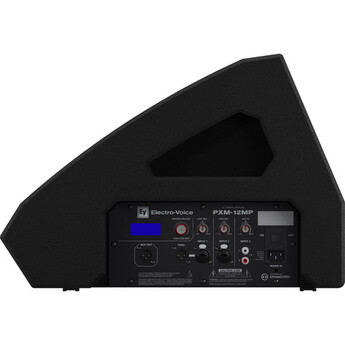

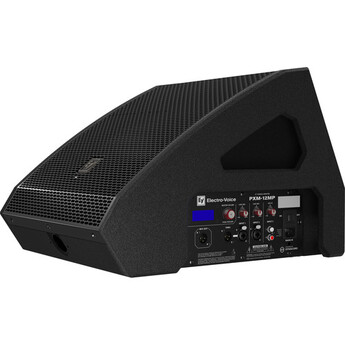

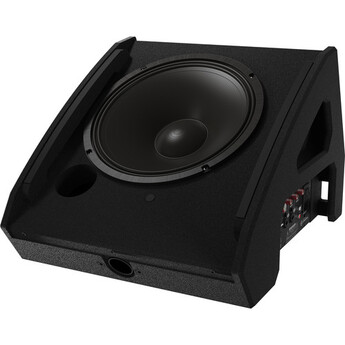

Electro-voice PXM-12MP 12" Powered Coaxial Monitor (Black)
Model: F.01U.362.554
Electro-Voice Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Name your price
ON A BRAND NEW Electro-Voice F.01U.362.554
MSRP: $899.00
?
Your Chances of Success
Your chances of success
How it works?
-
You name the price you want to pay for a product.
-
We send your offer to a network of Certified Retailers.
-
If the retailer likes your offer you get that price for the product.
Specifications
Signal Processing
| EQ | 4 x Presets (Factory) |
| Crossover | 1.6 kHz |
| Dynamic Processing | Limiter |
| Filters | 1 x High-Pass |
Power
| AC Power Connector | 1 x IEC Input |
| Current Consumption | 0.8 to 0.5 A |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
Physical
| Dimensions | 13.1 x 16.1 x 19" / 332.7 x 408.9 x 482.6 mm |
| Construction Material | Plywood, Steel |
| Weight | 29.8 lb / 13.5 kg |
| Handles | 1 x Each Side |
| Monitor Angle | 55° |
| Mounting | 1 x Pole Socket |
Performance
| Frequency Response | 64 Hz to 20 kHz -3 dB |
| Maximum SPL | 129 dB (Peak) |
| Coverage Angle | 90° H x 90° V |
| Protections | None |
| Frequency Range | 53 Hz to 20 kHz -10 dB |
PA Speaker
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
| Total Power Capacity | 700 W |
| Amplifier Power Rating | LF: 1 x 500 W HF: 1 x 200 W |
| Amplifier Class | Class-D |
Packaging Info
| Package Weight | 37.125 lb |
| Box Dimensions (LxWxH) | 22.7 x 17.5 x 16.9" |
Drivers
| LF Driver | 1 x 12" / 304.8 mm |
| HF Driver | 1 x 1.75" / 44.45 mm |
Connectivity
| Audio I/O | 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input 1 x Stereo RCA Female Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Link Thru |
- Floor Wedge or Main Speaker
- 12" / 1.75" Coaxial Driver
- Frequency Response: 64 Hz to 20 kHz
- 700W Class-D Power Amplifier
- Two XLR-1/4" Combo Jacks + Stereo RCA
- LCD Display with 1-Knob DSP Control
- Independent Gain Controls
- DSP Presets for Use with Subwoofer
- EQ Presets for Fast Setup
- Includes Power Cable
- Electro-Voice PXM-12MP 12" Powered Coaxial Monitor (Black)
- Includes Power Cord
- Limited 3-Year Warranty
